Stainless Steel 304 Woven Drapery Metal Wire Architectural Decorative Mesh
Metal mesh is an ideal material for decorative applications. It has a variety of styles and textures, allowing it to be used in all kinds of settings in both interior and exterior spaces. The versatility of metal mesh provides design options that can add visual interest to any space. It’s also highly durable, so it won’t degrade over time and can withstand exposure to the elements.
Architectural woven drapery is also called H-Type Cable and Rod Combination Mesh. The mesh is made of a variety of materials, including brass, copper, stainless steel, etc. It possesses exceptional flexibility, high durability, and good corrosion resistance. It is frequently used to construct doors, curtains, stair handrails, and outside wall shading.
The most frequent and basic type of draperies for decorating projects is woven stainless steel with different surface treatments, such as powder coating, titanium coating, electroplating gold, etc.,
Key Features of Woven Drapery Metal Wire Architectural Decorative Mesh:
1. Safety from fire, this mesh is made of metal which is not flammable material.
2. Simple to install, installation is quick and simple in a stylish way.
3. It is flexible and opulent and displays elegant and sumptuous beauty.
4. Different sizes and apertures, custom openings, and sizes are available.

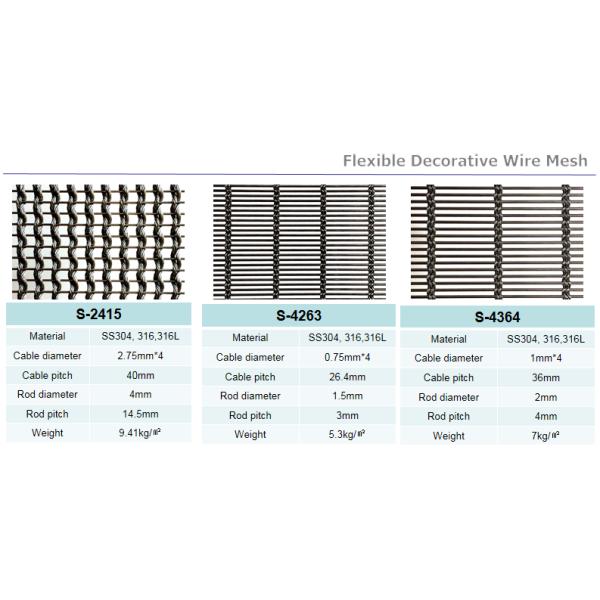

Typical specification of Woven Drapery Metal Wire Architectural Decorative Mesh
Typical specification of Woven Drapery Metal Wire Architectural Decorative Mesh | Number | Cable dia. | Cable pitch | Rod dia. | Rod
pitch | Percentage | Thickness | Weight |
| mm | mm | mm | mm | mm | Kg/m2 |
| 1 | 1×1.80 | 4.0 | 1.5 | 5.5 | 40.0% | 5.1 | 7.74 |
| 2 | 1×2.50 | 6.0 | 2.0 | 8.0 | 43.0% | 5.5 | 7.87 |
| 3 | 2×2.75 | 40.0 | 4.0 | 14.5 | 62.0% | 9.5 | 9.41 |
| 4 | 3×0.50 | 35.0 | 0.5 | 1.4 | 37.2% | 1.3 | 2.40 |
| 5 | 3×1.60 | 80.0 | 2.5 | 10.0 | 71.0% | 5.7 | 4.58 |
| 6 | 3×2.00 | 80.0 | 3.0 | 10.0 | 65.0% | 7.0 | 6.67 |
| 7 | 3×2.75 | 110.0 | 4.0 | 14.5 | 65.9% | 10.0 | 8.50 |
| 8 | 3×3.00 | 110.0 | 4.0 | 14.2 | 67.0% | 10.0 | 8.60 |
| 9 | 4×0.75 | 26.4 | 1.5 | 3.0 | 44.3% | 3.0 | 5.20 |
| 10 | 4×1.00 | 36.0 | 2.0 | 6.6 | 62.0% | 4.0 | 4.55 |
| 11 | 4×2.00 | 50.0 | 3.0 | 6.0 | 40.0% | 7.0 | 11.20 |
| 12 | 4×2.00 | 50.0 | 3.0 | 6.0 | 42.0% | 7.0 | 11.80 |
Color available to be ordered: brass, copper, bronze, golden, and stainless steel.

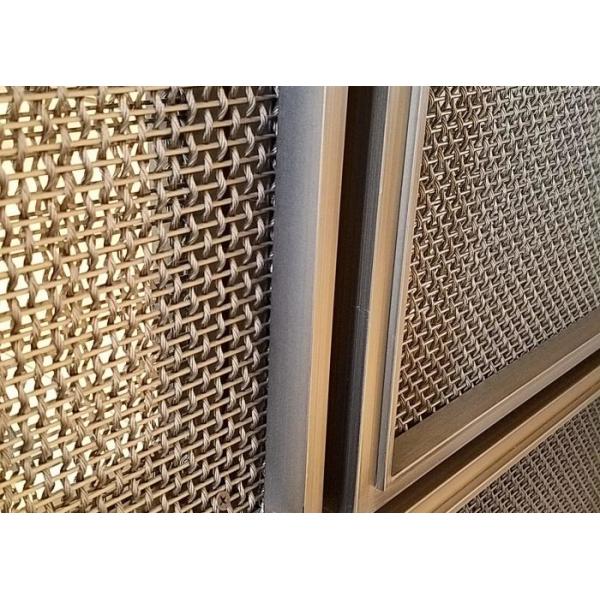

Application Pictures of Woven Drapery Metal Wire Architectural Decorative Mesh
Product Tags:
|
|
Stainless Steel 304 Decorative Wire Mesh Woven Drapery Metal Architectural Images
|
